Direct Drive Rotary

Kollmorgen used 50 years electormechanical and electromagnetical experience in their Direct Drive Rotary and Direct Drive Linear system solutions. The DDR and DDL engines will use more and more frequent, as shown beneficial properties in addition to conventional servo systems.

These direct drives using the advantages of conventional servo systems, but these drives have not mechanical transmission, that’s why increase the accuracy of system and reduce the maintenance costs. These drives directly connecting to driven loads and lose the components of conventional drive systems.

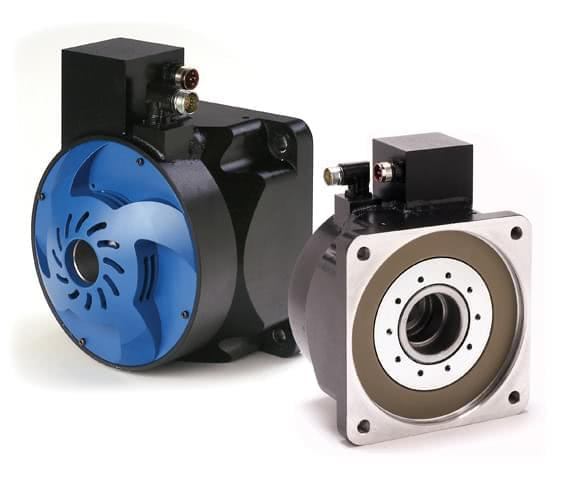

Features of Kollmorgen DDR

• 0 - 800 rpm rev range
• 16,9 - 1341 Nm torque range
• 2 097 152 increments / rev max resolution
• + / - 0,62 arcsec max accuracy
• large-diameter through hole shaft design
• absolute encoder or resolver feedback
• own bearings and high load capacity
• continuous rotation operation

Features of Absodex DDR

• 0 - 300 rpm rev range
• 6 - 500 Nm torque range
• 540 672 increments / rev max resolution
• + / - 5 arcsec max accuracy
• large-diameter through hole shaft design
• absolute encoder or resolver feedback
• own bearings and high load capacity
• stepper operation

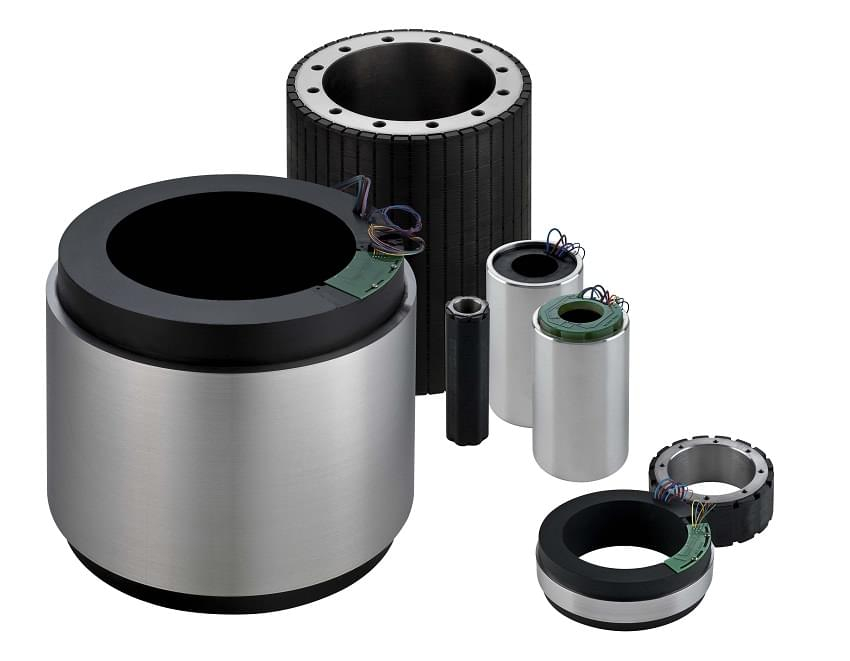

Features of Kollmorgen Frameless DDR

• 0 - 500 rpm rev range
• 16,9 - 1341 Nm torque range
• resolution is specified by customer’s needs
• accuracy depend by feedback system
• small build-up dimensions
• drive directly build to bearings
• continuous rotation operation
